日本图技midi logger GL840M/GL840WV存储记录仪

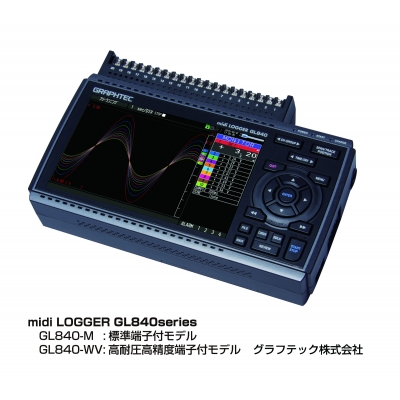

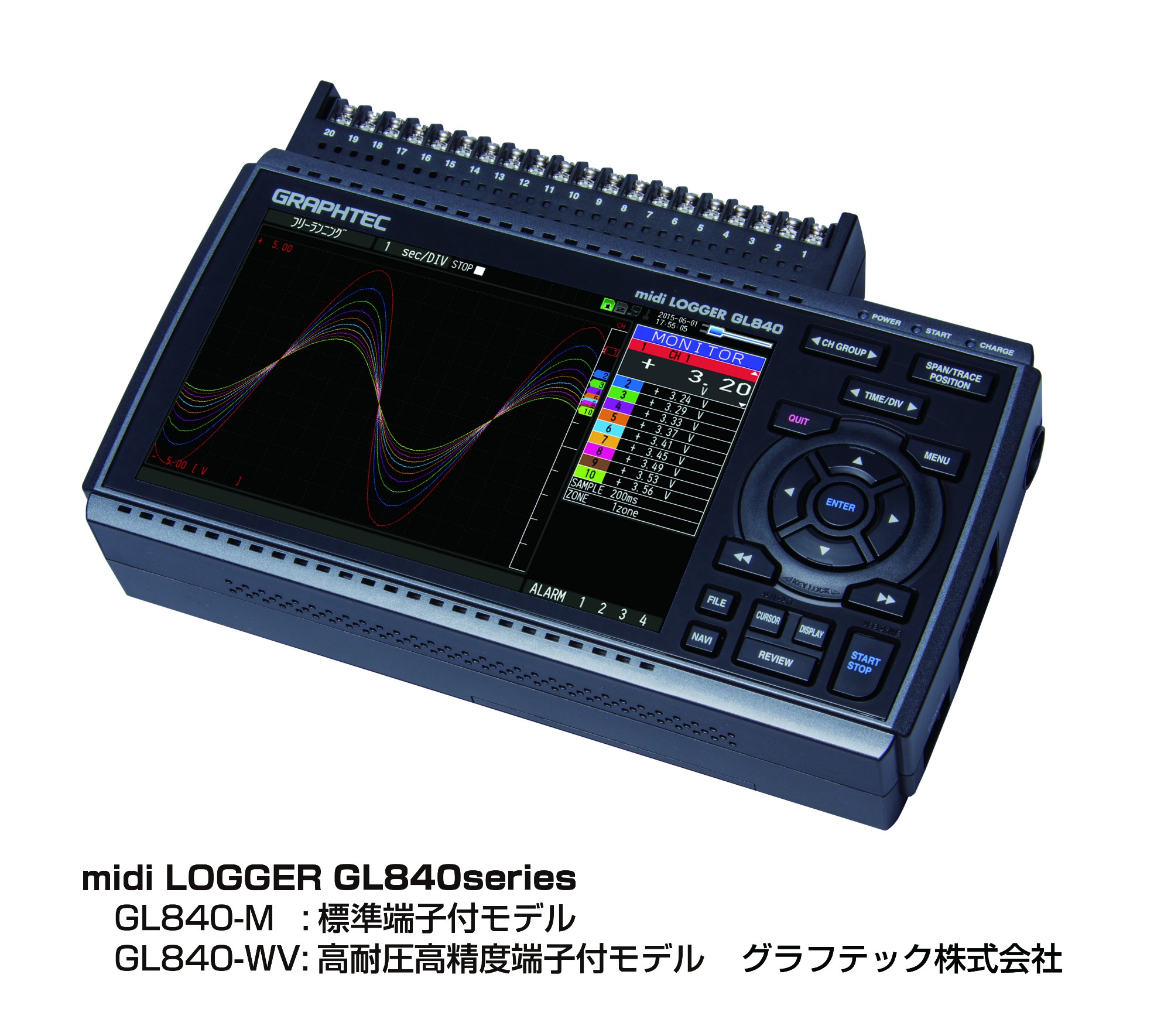

midi logger GL840M/GL840WV采用7寸液晶大屏幕显示、可以直接在屏幕上显示实时数据变化曲线和数据列表。
midi logger GL840M/GL840WV内置4个G的SD内存卡,打开20通道全开,1S采样可以记录一年时间。
midi logger GL840M/GL840WV可以有三种供电方式,交流供电,电池供电,直流驱动供电。
midi logger GL840M/GL840WV采用7寸液晶大屏幕显示、可以直接在屏幕上显示实时数据变化曲线和数据列表。
midi logger GL840M/GL840WV内置4个G的SD内存卡,打开20通道全开,1S采样可以记录一年时间。
midi logger GL840M/GL840WV可以有三种供电方式,交流供电,电池供电,直流驱动供电。
标配4GB闪存。记录数据可保存为GBD(graphtec binary data)格式、CSV格式。GBD格式需要用仪器专用软件进行查看,CSV格式可以直接用EXCEL打开。
采样速度 | 10ms | 50ms | 100ms | 200ms | 500ms | 1s | 10s |
---|---|---|---|---|---|---|---|
GBD格式 | 31日 | 77 | 95日 | 108日 | 207日 | 365日以上 | 365日以上 |
CSV格式 | 3日 | 11日 | 16日 | 21日 | 54日 | 109日 | 365日以上 |
采样速度 | 10ms | 20ms | 50ms | 100ms | 200ms | 500ms | 1s | 2s | |
---|---|---|---|---|---|---|---|---|---|
可使用ch数 | 1 | 2 | 5 | 10 | 20 | 50 | 100 | 200 | |
测定对象 | 电压 | ● | ● | ● | ● | ● | ● | ● | ● |
温度 | - | - | - | ● | ● | ● | ● | ● |
日本图技GL840系列存储记录仪分为两个型号,GL840-M是标准型配的是B564的测试端子台,GL840-WV是高耐压高精度型配的B565的测试端子台、供不同测量用途选择使用。
项目 | 标准型 GL840M | 高耐压·高精度型 GL840WV | |
---|---|---|---|
电压 | 量程 | 20mV~100V、1-5V F.S. | 20mV~100V、1-5 V/F.S. |
最大输入电压 (输入端子/GND间) | 60V | 300Vp-p | |
测量精度 | ±0.1% of F.S. | ±(0.05% of F.S. +10μV) | |
温度 | 热电偶 | R,S,B,K,E,T,J,N,W (WRe5-26) | |
热电阻 | Pt100,JPt100,Pt1000 | ||
测定精度 | 例)K型热电偶时 (TS:温度) -200<=TS<=-100 ±(0.05% of rdg +2.0℃) -100<TS<=1370 ±(0.05% of rdg +1.0℃) 基准接点补偿确度 ±0.5℃ K型热电偶测量 -100℃ 时 测量精度 ±2.55℃ 测量100℃时 测量精度 ±1.55℃ | 例)K型热电偶时 (TS:温度) -200<=TS<=-100 ±1.5℃ -100<TS<=1370 ±0.8℃ 基准接点补偿确度 ±0.3℃ K型热电偶测量 -100℃时 测量精度 ±1.8℃ 测量100℃时 测量精度 ±1.1℃ | |
湿度 | 0~100% (需要选件B-530) |
GL840-M/GL840-WV采用了全通道隔离输入方式、可测量各种物理信号。标准配置通道数为20ch、最大可扩展至200ch、使用接续线缆·扩展基座·端子台可延长本体-端子间距至20m。
通道扩展配置方案 | 20ch | 40ch | 100ch | 200ch |
---|---|---|---|---|
GL840主机 | 1 | 1 | 1 | 1 |
扩展端子台连接用线缆B567X | - | 1 | 1 | 1 |
扩展端子台基座B566X | - | 2 | 5 | 10 |
20ch扩展端子台 (标准型B564X/高耐压高精度型B565X) | - | 1 | 4 | 9 |
日本图技GL840M/GL840WV在安装选件GL无线LAN模块(B-568) 后、可通过无线进行测量。 安装无线LAN模块、根据用途选用「母机模式」或者「子机模式」进行无线测量。GL840M/GL840WV存储记录仪通过无线模块B568可以有三种无线通讯方式:和电脑直接联,和手机直联,和路由器连接。用无线通讯可以可以直接查看和读取仪器上的数据,也可以控制记录仪对记录进行设置和操作。
Item | Description | ||
---|---|---|---|
Model number | GL840-M | GL840-WV | |
Number of analog input channels | 20 channels in standard configuration, Expandable up to 200 channels | ||
Number of analog input terminals | Up to 10 terminals (20 channels / terminal), standard config: 1 | ||
Type of analog input terminal | Multi-input type, Withstand-voltage type | ||
Port for digital sensor | 1 port for the sensor/input terminal/adapter of the GL100 | ||
External input/ output *1 | Input *2 | Trigger or Sampling (1 channel), Logic/Pulse (4 channels) | |
Output *3 | Alarm (4 channels) | ||
Sampling interval | 10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal | ||
Time scale of waveform display | 1 sec. to 24 hour /division | ||
Trigger, Alarm function | Trigger action | Start or stop capturing data by the trigger | |
Repeat action | Off, On (auto rearmed) | ||
Trigger source | Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time | ||
Condition Setting | Combination: OR or AND Analog signal: Rising (High), Falling (Low), Window-in, Window-out Logic signal: Pattern (combination of each input signal in high or low) Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out | ||
Alarm output | Outputs a signal when alarm condition occurs in the input signal *5 | ||
Pulse input function | Rotation count (RPM) mode | Counts the number of pulses per sampling interval and converts to rpm (rotations per minute), Number of pulses for one rotation can be set to 50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale) | |
Accumulating count mode | Accumulates the number of pulses from the start of measurement 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) | ||
Instant count mode | Counts the number of pulses per sampling interval 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) | ||
Calculation function | Between channels | Addition, Subtraction, Multiplication, and Division for analog input | |
Statistical | Select two calculations from Average, Peak, Maximum, Minimum, RMS | ||
Search function | Search for analog signal levels, values of logic or pulse or alarm point in captured data | ||
Interface to PC | Ethernet (10 BASE-T/100 BASE-TX), USB (Hi-speed), WLAN (using B-568 option) | ||
Storage device | Internal | Built-in 4GB Flash Memory *6 | |
External | One SD card slot (Support SDHC memory card, up to 32GB) *7 | ||
Saved contents | Captured data, Setting conditions, Screen copy | ||
Capturing mode | Mode: Normal, Ring, Relay Ring: Saves most recent data (Number of capturing data: 1000 to 2000000 points) *8 Relay: Saves data to multiple files without losing data until dada capturing is stopped | ||
Replay data | Replays captured data that was saved in the GL840 (in GBD or CSV format) | ||
Scaling (Engineering unit) function | Measured value can be converted to specified engineering unit • Analog voltage: Converts using four reference points (gain, offset) • Temperature: Converts using two reference points (offset) • Pulse count: Converts using two reference points (gain) | ||
Action during data capture | • Displaying past data (using dual display mode (Current + Past data)) • Hot-swapping the SD memory card • Saving data in between cursors | ||
Display | Size | 7-inch TFT color LCD (WVGA: 800 x 480 dots) | |
Language | English, French, German, Chinese, Korean, Russian, Spanish, Japanese | ||
Information *9 | Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values | ||
Operating environment | 0 to 45 ºC, 5 to 85 % RH (non condensed) (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC) | ||
Power source | AC adapter | 100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory) | |
DC power | 8.5 to 24 V DC (DC drive cable (option B-514) is required) | ||
Battery pack | Mountable two battery packs (battery pack (option B-569): 7.2V DC, 2900mAh) | ||
Power consumption *10 | Max. 38 VA | ||
External dimensions (W x D x H in mm, Excluding projections) | Approx. 240 x 158 x 52.5 | Approx. 240 x 166 x 52.5 | |
Weight *11 | Approx. 1010 g | Approx. 1035 g |
*1
Input/Output cable for GL (option B-513) is required to connect the signal.
*2
Input signal;
Voltage range: Up to 24V (common ground)
Signal type: Voltage, Open collector, Contact (relay)
Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))
*3
Output signal: Open collector (pull-up to 5V by 10kΩ resistor)
Voltage: Max. 30V,
Current: Max. 0.5A,
Collector dissipation: Max. 0.2W
*4
Minimum interval varies by number of channels used.
*5
Output port can be specified in each input channel.
*6
The built-in Flash memory is available for units with serial numbers C604XXXX or later. Please contact your local representative for more information.
*7
SD memory card cannot be used on the SD card slot while the wireless LAN unit (opton B-568) is used.
*8
Size of the capture data will be limited to 1/3 of available memory.
*9
Display mode is switched every time the dedicated key is pressed. In magnified digital value mode, the
displayed channel number can be specified. In the waveform display mode, the changing of the time scale will
be effective from the point of the next displayed data.
*10
Rating under maximum power consumption using the AC adapter, with LCD display on, and battery pack(s)
being charged.
*11
Excludes AC adapter and battery pack.
Item | Description | ||||
---|---|---|---|---|---|
Model number | GL840-M, Input terminal B-564 | GL840-WV, Input terminal B-565 | |||
Input method | All channels isolated balanced input *12, Scans channels for sampling | ||||
Type of input terminal | Screw terminal (M3 screw) | ||||
Measurement range | Voltage | 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, and 1-5V F.S. (Full Scale) | |||
Thermocouple | Type: K, J, E, T, R, S, B, N, W (WRe5-26) Range: 100, 500, 2000 ºC *13 | ||||
RTD (Resistance Temperature Detector) | Type: Pt100, Pt1000 (IEC751), JPt100 (JIS) Range: 100, 500, 2000 ºC *13 | ||||
Humidity | 0 to 100 % RH - using the humidity sensor (option B-530) | ||||
Filter | Off, 2, 5, 10, 20, 40 (moving average in selected number) | ||||
Measurement accuracy *14 | |||||
Voltage | ± 0.1% of F.S. (Full Scale) | ± (0.05% of F.S. + 10μV) | |||
Temperature (Thermocouple) *15 | |||||
Type | Measurement range (TS: Temp Sense) | Measurement accuracy | Measurement accuracy | ||
R | 0 ≤ TS ≤ 100 ºC | ± 5.2 ºC | ± 4.5 ºC | ||
100 < TS ≤ 300 ºC | ± 3.0 ºC | ± 3.0 ºC | |||
300 < TS ≤ 1600 ºC | ± (0.05% of rdg. + 2.0 ºC) | ± 2.2 ºC | |||
S | 0 ≤ TS ≤ 100 ºC | ± 5.2 ºC | ± 4.5 ºC | ||
100 < TS ≤ 300 ºC | ± 3.0 ºC | ± 3.0 ºC | |||
300 < TS ≤ 1760 ºC | ± (0.05% of rdg. + 2.0 ºC) | ± 2.2 ºC | |||
B | 400 ≤ TS ≤ 600 ºC | ± 3.5 ºC | ± 3.5 ºC | ||
600 < TS ≤ 1820 ºC | ± (0.05% of rdg. + 2.0 ºC) | ± 2.5 ºC | |||
K | -200 ≤ TS ≤ -100 ºC | ± (0.05% of rdg. + 2.0 ºC) | ± 1.5 ºC | ||
-100 < TS ≤ 1370 ºC | ± (0.05% of rdg. + 1.0 ºC) | ± 0.8 ºC | |||
E | -200 ≤ TS ≤ -100 ºC | ± (0.05% of rdg. + 2.0 ºC) | ± 1.0 ºC | ||
-100 < TS ≤ 800 ºC | ± (0.05% of rdg. + 1.0 ºC) | ± 0.8 ºC | |||
T | -200 ≤ TS ≤ -100 ºC | ± (0.1% of rdg. + 1.5 ºC) | ± 1.5 ºC | ||
-100 < TS ≤ 400 ºC | ± (0.1% of rdg. + 0.5 ºC) | ± 0.6 ºC | |||
J | -200 ≤ TS ≤ -100 ºC | ± 2.7 ºC | ± 1.0 ºC | ||
-100 < TS ≤ 100 ºC | ± 1.7 ºC | ± 0.8 ºC | |||
100 < TS ≤ 1100 ºC | ± (0.05% of rdg. + 1.0 ºC) | ± 0.6 ºC | |||
N | -200 ≤ TS < 0 ºC | ± (0.1% of rdg. + 2.0 ºC) | ± 2.2 ºC | ||
0 ≤ TS ≤ 1300 ºC | ± (0.1% of rdg. + 1.0 ºC) | ± 1.0 ºC | |||
W | 0 ≤ TS ≤ 2000 ºC | ± (0.1% of rdg. + 1.5 ºC) | ± 1.8 ºC | ||
R.J.C. | ± 0.5 ºC | ± 0.3 ºC | |||
Temperature (RTD) *16 | |||||
Type | Measurement range (TS: Temp Sense) | Accuracy | Accuracy | ||
Pt100 | -200 ≤ TS ≤ 100 ºC | ± 1.0 ºC | ± 0.6 ºC | ||
100 < TS ≤ 500 ºC | ± 0.8 ºC | ||||
500 < TS ≤ 850 ºC | ± 1.0 ºC | ||||
Pt1000 | -200 ≤ TS ≤ 100 ºC | ± 0.8 ºC | ± 0.6 ºC | ||
100 < TS ≤ 500 ºC | ± 0.8 ºC | ||||
JPt100 | -200 ≤ TS ≤ 100 ºC | ± 0.8 ºC | ± 0.6 ºC | ||
100 < TS ≤ 500 ºC | ± 0.8 ºC | ||||
A/D converter | Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range) | ||||
Input resistance | 1MΩ ±5% | ||||
Allowable signal source resistance | Up to 300Ω | Up to 100Ω | |||
Maximum input voltage | Between (+) / (-) terminal | 20 mV to 2 V range: 60 Vp-p, 5 V to 100 V range: 110 Vp-p | |||
Channels ((-) / (-)) | 60 Vp-p | 600 Vp-p | |||
Channel / GND | 60 Vp-p | 300 Vp-p | |||
Max. voltage (withstand) | Between channels | 350 Vp-p (1 minute) | 600 Vp-p | ||
Channel / GND | 350 Vp-p (1 minute) | 2300 Vrms AC (1 minute) |
*12
The terminal "b" for using the RTD is connected each other across all channels.
*13
If the specifications of the temperature sensor is lesser or greater than the selected measurement range, GL840
can measure up to the specifications of the sensor.
*14
Subject to the following conditions:
Room temperature is 23 oC ± 5 oC.
When 30 minutes or more have elapsed after power has turned on.
Filter is set to 10.
Sampling rate is set to 1 sec, using 20-channel in GL840-M and 10-channel in GL840-WV.
GND terminal is connected to ground.
*15
Wire size of thermocouple used is 0.32mm diameter in the T or K type and 0.65mm diameter in other types.
*16
Supports 3-wire type sensor.
Item | Description | ||
---|---|---|---|
Model name | GL100_240_840-APS | ||
Supported OS | Windows 10, 8.1, 8, 7, Vista (32/64-bit edition) | ||
Supported device | GL840 (USB, Ethernet, WLAN), GL100 (USB, WLAN) | ||
Functions | Control the GL series, Real-time data capture, Replay data, and Data format conversion | ||
Supported units & channels | Up to 1000 channels total, Up to 4 groups (number of units is limited by model) | ||
Settings control | Input condition, Capturing condition, Trigger/Alarm condition, Report, etc. | ||
Capturing data | Saved to PC | Saves captured data in real time (in GBD binary or CSV format) | |
Saved to GL unit | Saves to the SD memory card (in GBD binary or CSV format) | ||
Displayed information | Y-T waveform, Digital values, Report, X-Y graph (specified period of data, data reply only), Two displays for the current and past data, and Statistical calculation | ||
File operation | Converting data format to CSV from GBD binary, merge multiple data files in the time axis or as an additional channel | ||
Warning function | Send e-mail to the specified address when the alarms occur | ||
Statistical calculation | Maximum, Minimum, and Avarage during data capturing | ||
Report function | Creates the daily or monthly report automatically |
Item | Description | |
---|---|---|
Model name | GL-Connect | |
Supported OS | Android 4.1 to 6.0, iOS 7/8/9 (up to 9.3.4) | |
Supported device | GL840 (WLAN), GL100 (WLAN) | |
Functions | Control the GL series, Display measured data in waveform or digital value | |
Supported units | Up to 10 units | |
Settings control | Start/Stop, Sampling interval | |
Capturing data | Saves captured data in the GL main body (data cannot be saved in the smart device) | |
Displayed information | Data captured in real time by digital value, Replay the data stored in the GL body by the waveform |
Item | Description | |
---|---|---|
Model number | B-568 | |
Supported device | GL840 | |
Communication method | Wireless communication (using radio waves in the 2.4GHz band) | |
Supported WLAN system | IEEE802.11b/g/n WPS: Push button or PIN method Security protocols: WEP64, WEP128, WPA-PSK/WPA2-PSK, AKIP/AES Communication distance: Approx. 40m (depending on the conditions of radio communication) | |
Installed location | Attaches to the SD card slot *7 | |
Function | Access Point mode: Communicate with the GL100-WL as a remote sensor (captured data in the GL100-WL is transferred to GL840) Station mode: Communicate with PC or Smart device (control GL840 and transfer the data from GL840) | |
Connected number of GL100-WL | GL840: Up to 5 units of the GL100-WL | |
Item | Description | |
---|---|---|
Allowable temperature range | -25 to 80℃ | |
Allowable humidity range | 0 to 100% RH | |
Relative humidity measurement accuracy | ±3% RH(5 to 98% RH at 25℃) | |
Method | Capacitance method | |
Relative humidity measurement accuracy (5 to 98%) | Measurement environment | Measurement accuracy |
0 to 10℃ | ±5% RH | |
10 to 20℃ | ±4% RH | |
20 to 30℃ | ±3% RH | |
30 to 40℃ | ±4% RH | |
40 to 50℃ | ±5% RH | |
50 to 60℃ | ±6% RH | |
60 to 70℃ | ±7% RH | |
70 to 80℃ | ±8% RH | |
* Measurement accuracy at 60℃ or more is a reference value. | ||
Response time | 15 sec. (90% response when membrance filter is installed) | |
Sensor output | 0 to 1 VDC | |
External dimensions | Φ14 x 80 mm (excluding cable) | |
Cable length | 3 m | |
Sensor power source | DC + 5 to +16 V | |
Power consumption | approx. 4 mA |
Item | Model number | Description |
---|---|---|
Input terminal (Multi-inputs) | B-564 | 20ch input terminal, multi-input type |
Input terminal (Withstand voltage | B-565 | 20ch input terminal, withstand-high-voltage type |
Base unit for input terminal | B-566 | Base unit for input terminal (B-564 or 566) |
Connection cable for extension terminal | B-567-05 | Cable to connect GL840 and B-566, 50 cm long |
B-567-20 | Cable to connect GL840 and B-566, 2 m long | |
Wireless LAN unit | B-568 | WLAN adapter, IEEE802.11 b / g / n |
Battery pack | B-569 | Rechargeable Lithium-ion battery (7.2 V, 2900mAh) |
Bracket for DIN rale (GL840 main body) | B-570 | Bracket for DIN rail (GL840 main body), Build-to-order |
Bracket for DIN rail (extension terminal) | B-540 | Bracket for DIN rail (Input terminal), Build-to-order |
Input/Output cable for GL series | B-513 | 2 m long (no clip on end of cable) |
DC drive cable | B-514 | 2 m long (no clip on end of cable) |
Humidity sensor | B-530 | With 3 m long signal cable (with power plug) |
Shunt resistor | B-551-10 | 250 ohms 0.1% (it converts the signal to the "1-5V" from the "4-20mA") |
AC power adapter | ACADP-20 | For replacement Input: 100 to 240 V AC, Output: 24 V DC |
Temp & Humidity sensor | GS-TH | Temperature and humidity measurement |
Illuminance & UV sensor | GS-LXUV | Illuminance and UV intensity measurement, cable 20cm long |
Carbon Dioxide (CO2) sensor | GS-CO2 | CO2 measurement, cable 20cm long |
Acceleration & Temp sensor | GS-3AT | Acceleration and temperature measurement, cable 20cm long |
Thermistor input terminal | GS-4TSR | Temp measurement (using a Thermistor), cable 20cm long |
Thermistor sensor (Normal type) | GS-103AT-4P | Temperature sensor (-40 to 105 ºC), 3m long, 4pcs/set |
Thermistor sensor (Ultrathin type) | GS-103JT-4P | Temperature sensor (-40 to 120 ºC), 3m long, 4pcs/set |
AC current sensor adapter | GS-DPA-AC | Current measurement (using a CT), cable 20cm long |
AC current sensor (50A) | GS-AC50A | Current sensor (CT) 50A, cable 20cm long |
AC current sensor (100A) | GS-AC100A | Current sensor (CT) 100A, cable 20cm long |
AC current sensor (200A) | GS-AC200A | Current sensor (CT) 200A, cable 20cm long |
Voltage & Temp input terminal | GS-4VT | Voltage or Temperature (using a thermocouple), cable 20cm long |
Module extension cable | GS-EXC | Extension cable for the sensor / terminal / adapter module, 1.5m long |
Dual port adapter | GS-DPA | Connect up to 2 sensor modules |
